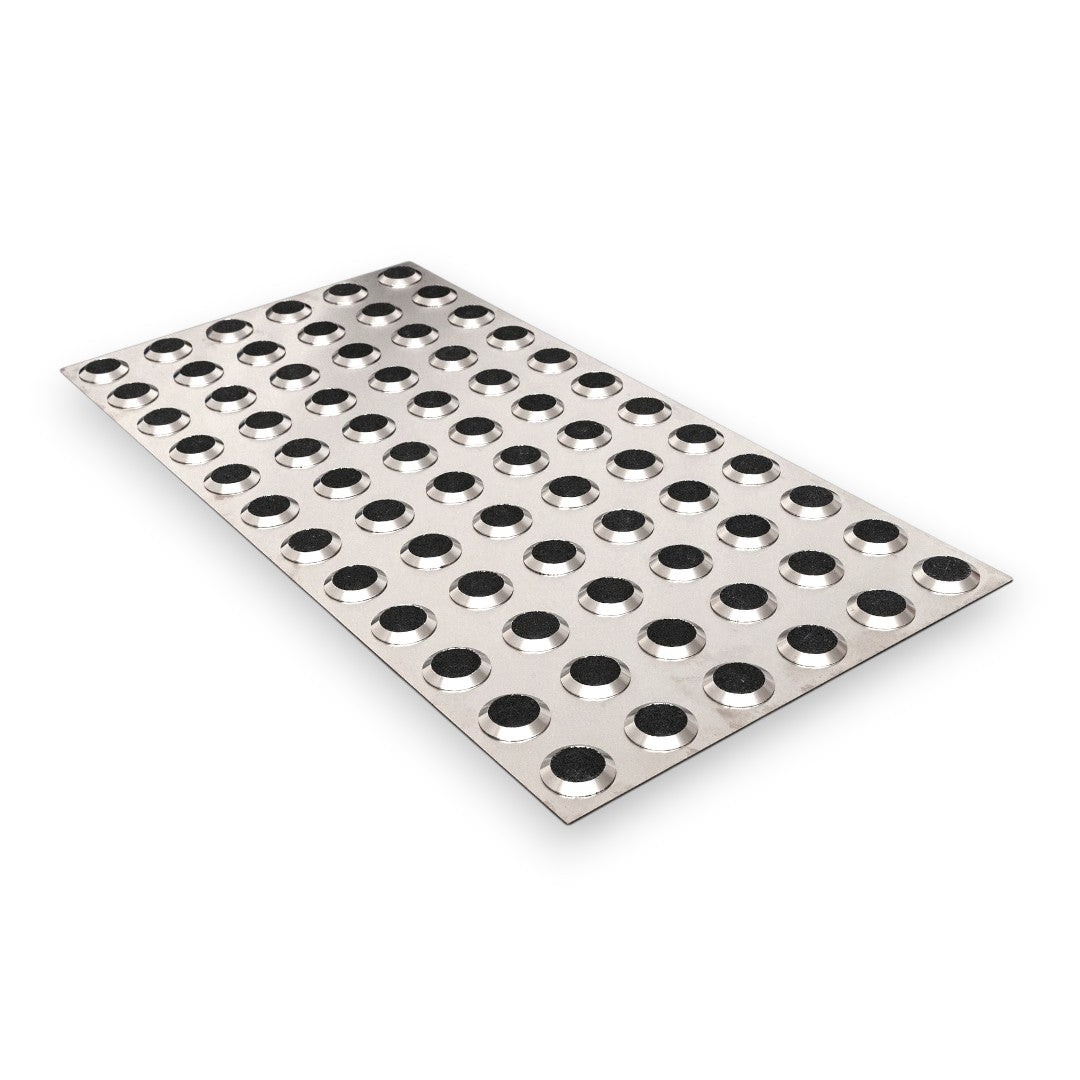

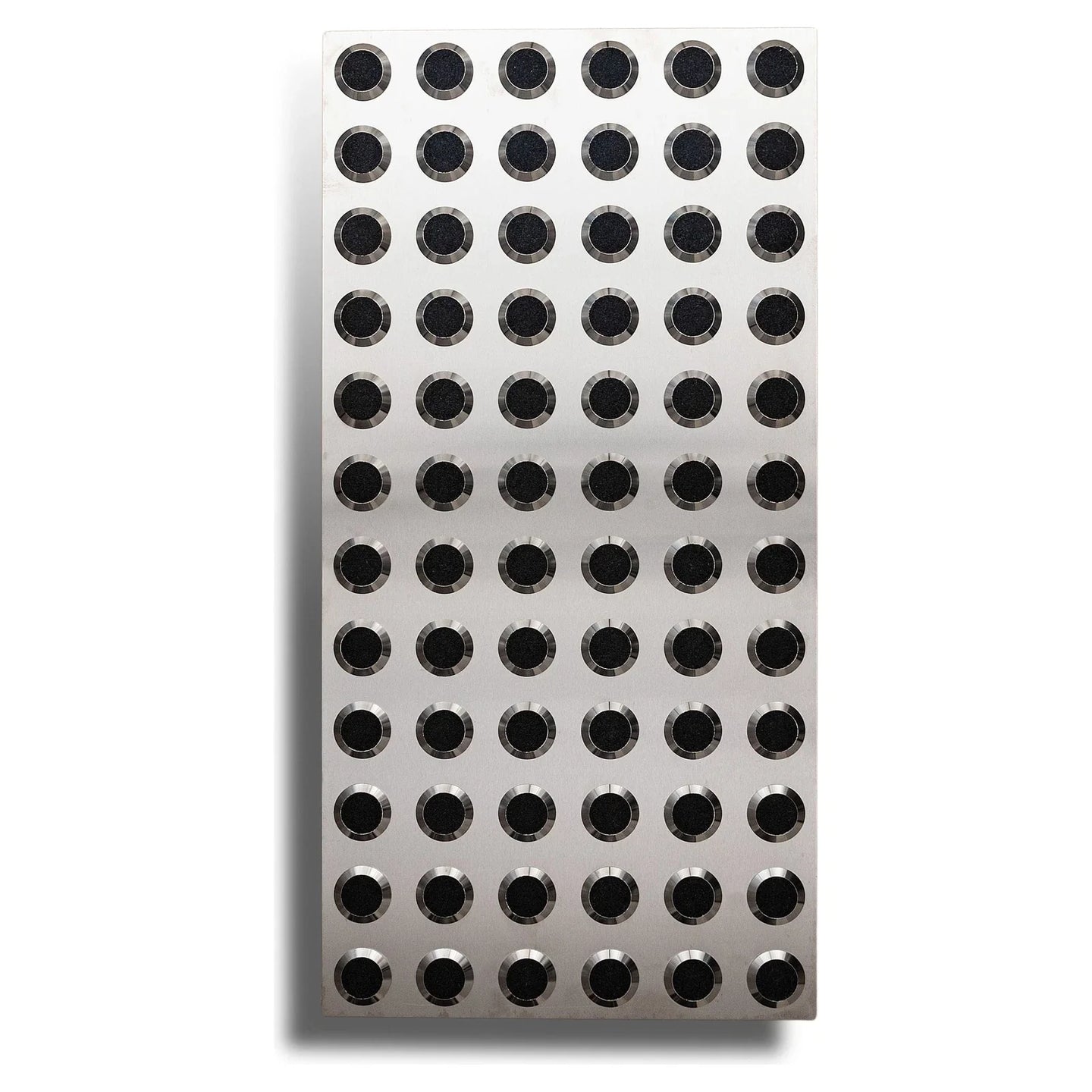

The Tactile Indicator Plate – Stainless Steel with durable carborundum inserts 300x600mm is designed for projects requiring broader coverage and fewer joins compared to smaller tiles. Manufactured from 316 marine-grade stainless steel, it combines modern style with long-term performance.

This plate is P5 slip rated and fully AS/NZS 1428.4:2009 compliant, making it suitable for both indoor and outdoor use in high-traffic public areas. With 6 countersunk fixing points, it mounts flush to the surface for a professional finish and reliable installation.

At 300x600mm, each plate reduces installation time by covering a larger area, making it ideal for stair landings, ramps, public transport platforms, and commercial entries.

Key Features:

• Large 300x600mm plate for efficient coverage.

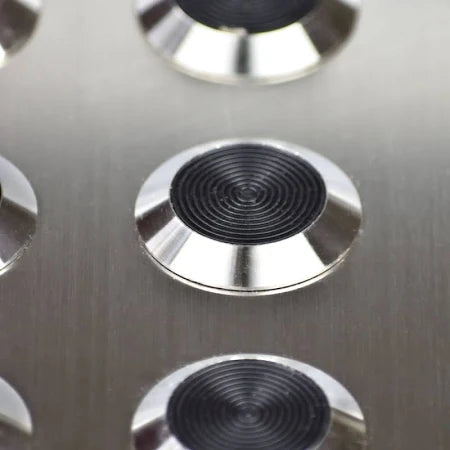

• 316 stainless steel + carborundum inserts for durability and visibility.

• P5 slip rating for maximum traction.

• 6 countersunk holes – fast, flush mounting.

• Heavy-duty design for long-term indoor/outdoor use.

Specifications:

• Material: 316 Stainless Steel + Carborundum Insert

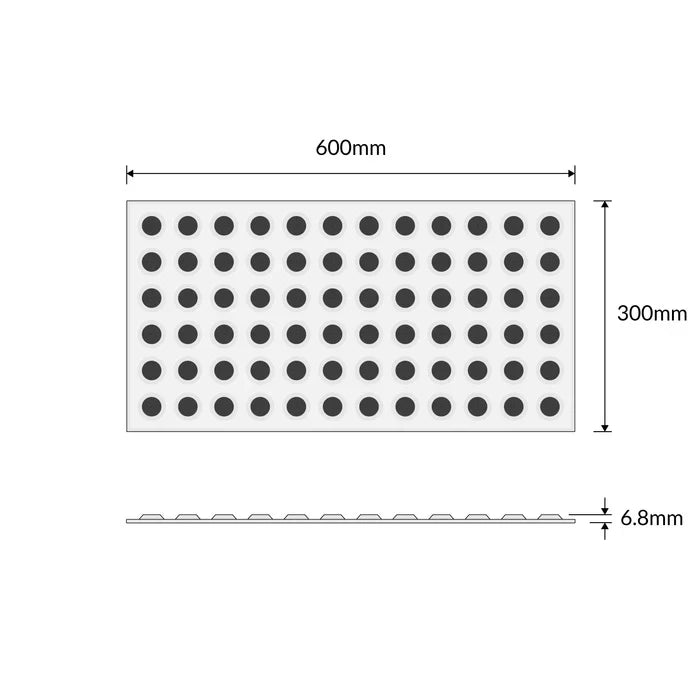

• Size: 300 x 600mm

• Plate Thickness: 1.75mm

• Raised Dome: 5mm

• Total Thickness: 6.75mm

• Weight: 6kg per plate


• Fixings: 6 countersunk holes per tile

Applications:

• Transport hubs – large platforms and concourses.

• Public walkways – plazas, pathways, and crossings.

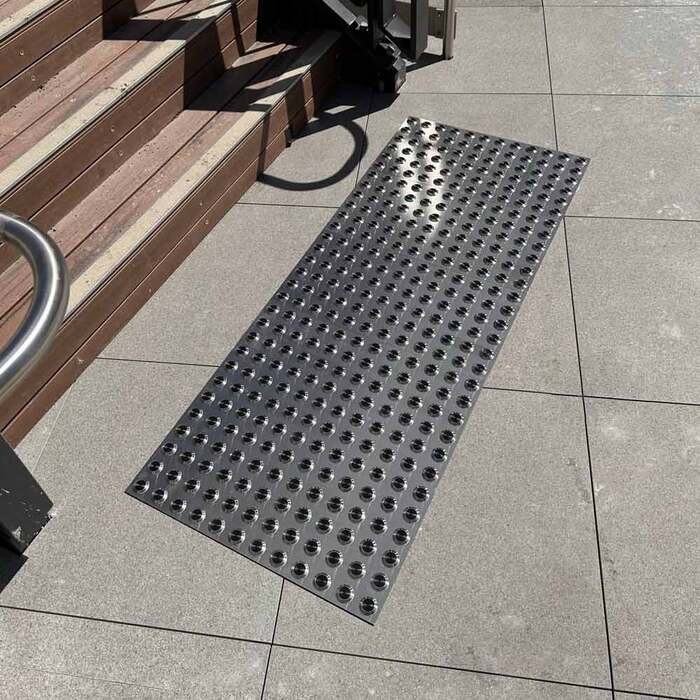

• Stair landings & ramps – hazard guidance for safety.

• Commercial entries – offices, shopping centres, and public buildings.
