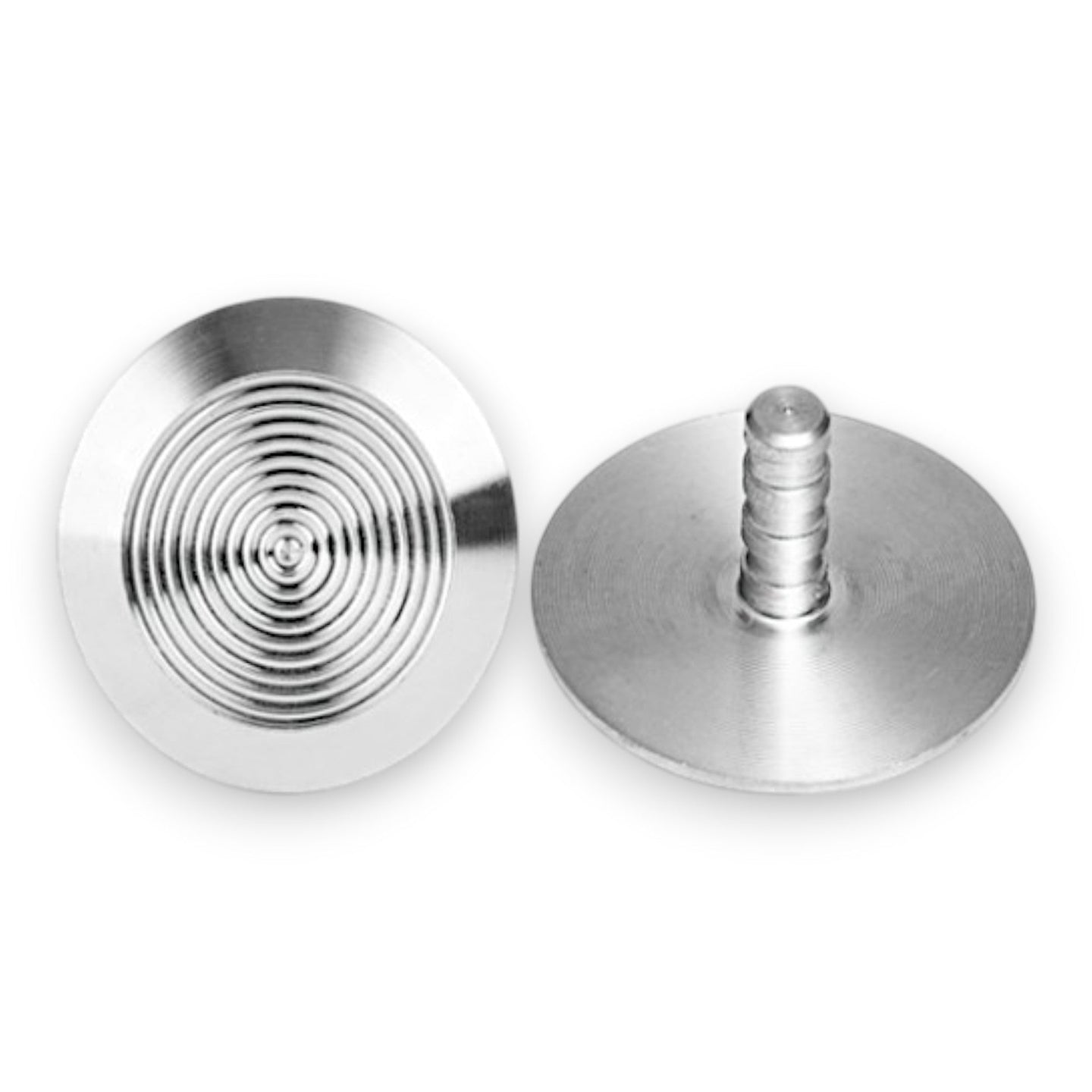

The Stainless Steel Tactile Indicator Stud provides lasting accessibility and safety for individuals with visual impairments. Made from 316 marine-grade stainless steel, it offers superior corrosion resistance for both indoor and outdoor use, and complies with AS/NZS 1428.4.1:2021 standards.

Each stud features a single-stud design and is installed using a 6mm drill bit, ensuring secure and straightforward fixing. The 35mm diameter head with 5mm tactile height provides clear guidance underfoot, while the 13mm shaft ensures stability even under heavy pedestrian traffic.

Key Features:

  • 316 marine-grade stainless steel – corrosion and weather resistant

  • AS/NZS 1428.4.1:2021 compliant

  • Single-stud design, installs with 6mm drill bit

  • 35mm diameter, 5mm height tactile clarity

  • 13mm shaft length for secure fixing

  • 400 studs required per m² coverage

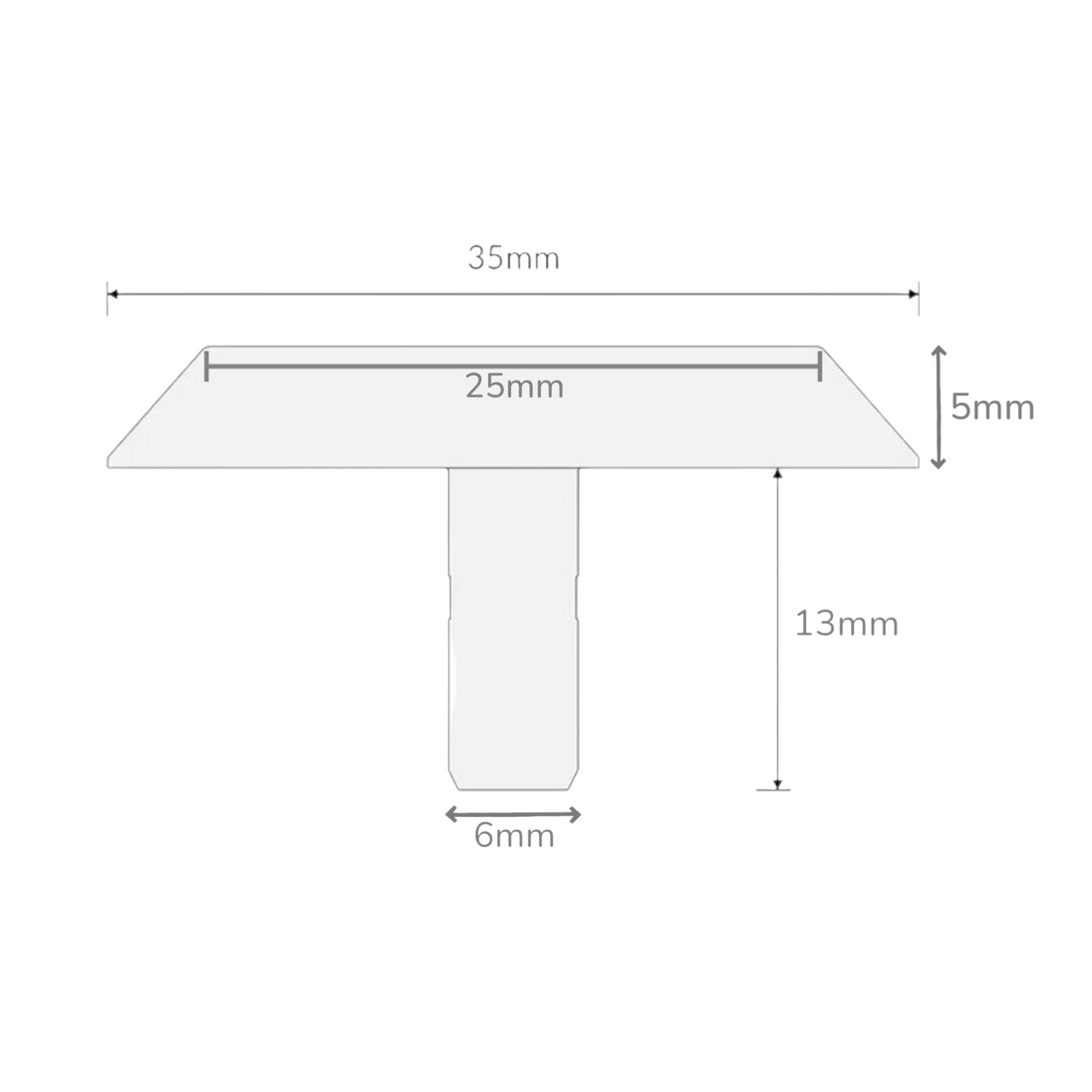

Specifications:

  • Material: 316 Stainless Steel

  • Head Diameter: 35mm

  • Head Height: 5mm

  • Shaft Length: 13mm

  • Installation: 6mm drill bit required

  • Weight: 30g per stud

  • Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

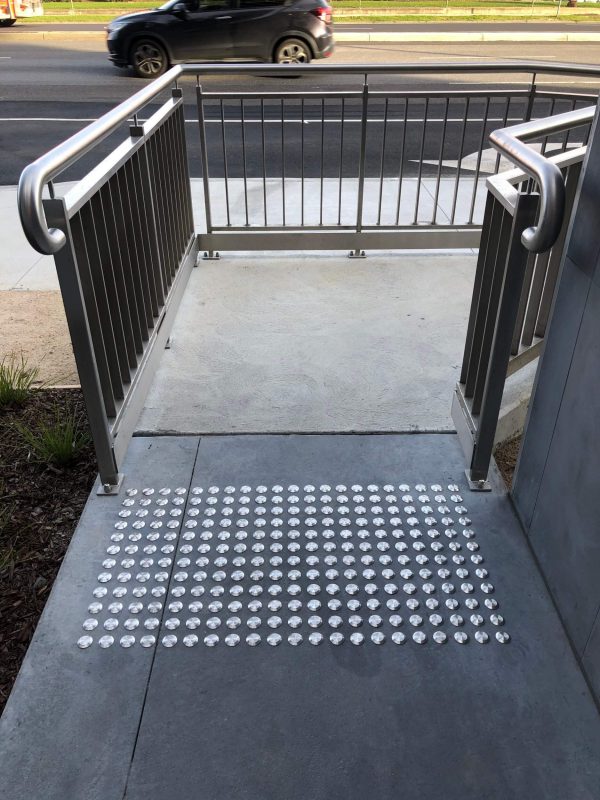

Applications:

  • Public walkways & pedestrian crossings

  • Transportation hubs (stations, bus stops, airports)

  • Commercial buildings (entrances, lobbies, corridors)

  • Outdoor public spaces (parks, plazas, civic areas)

BIZ DISPLAY ELITE

Tactile Indicator Stud – Stainless Steel

SKU SF101
AU$2.00
AU$1.10
GST Exempt
In stock

The Stainless Steel Tactile Indicator Stud provides lasting accessibility and safety for individuals with visual impairments. Made from 316 marine-grade stainless steel, it offers superior corrosion resistance for both indoor and outdoor use, and complies with AS/NZS 1428.4.1:2021 standards.

Each stud features a single-stud design and is installed using a 6mm drill bit, ensuring secure and straightforward fixing. The 35mm diameter head with 5mm tactile height provides clear guidance underfoot, while the 13mm shaft ensures stability even under heavy pedestrian traffic.

Key Features:

  • 316 marine-grade stainless steel – corrosion and weather resistant

  • AS/NZS 1428.4.1:2021 compliant

  • Single-stud design, installs with 6mm drill bit

  • 35mm diameter, 5mm height tactile clarity

  • 13mm shaft length for secure fixing

  • 400 studs required per m² coverage

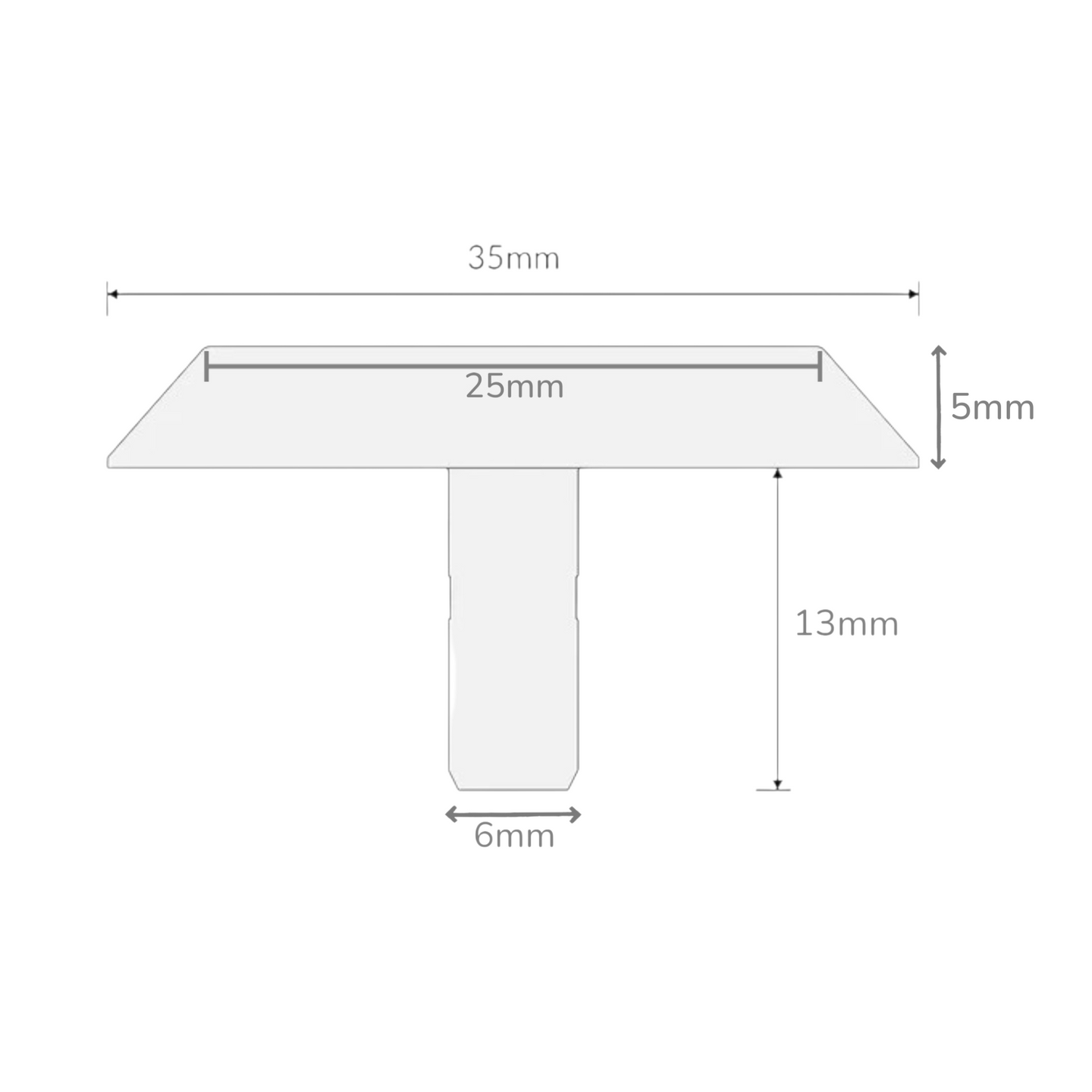

Specifications:

  • Material: 316 Stainless Steel

  • Head Diameter: 35mm

  • Head Height: 5mm

  • Shaft Length: 13mm

  • Installation: 6mm drill bit required

  • Weight: 30g per stud

  • Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

  • Public walkways & pedestrian crossings

  • Transportation hubs (stations, bus stops, airports)

  • Commercial buildings (entrances, lobbies, corridors)

  • Outdoor public spaces (parks, plazas, civic areas)

🛡️ Product Warranty

This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.

❓ Product FAQs

What are tactile indicators used for?

Tactile indicators, also known as tactile ground surface indicators or TGSIs, are used to provide a raised ground surface warning for people who are blind or vision impaired. They are commonly installed near stairs, ramps, kerb ramps, pedestrian crossings, train platforms, building entrances, walkways and other Australian public or commercial areas where extra ground surface guidance is required.

Where are tactile indicators commonly installed?

Tactile indicators are commonly installed in public access areas, commercial buildings, schools, hospitals, aged care facilities, shopping centres, apartment buildings, transport areas, office buildings and pedestrian pathways. They are often used near hazards, changes in level, access points and circulation paths to support safer movement through built environments.

Why choose tactile indicators for accessibility and safety?

Tactile indicators help improve accessibility, wayfinding and safety by providing a detectable ground surface warning underfoot. They are an important accessibility product for buildings, workplaces and public spaces that need to support safer access for people with low vision or vision impairment. BIZ Display Elite supplies tactile indicator products for Australian commercial, public and workplace environments.
