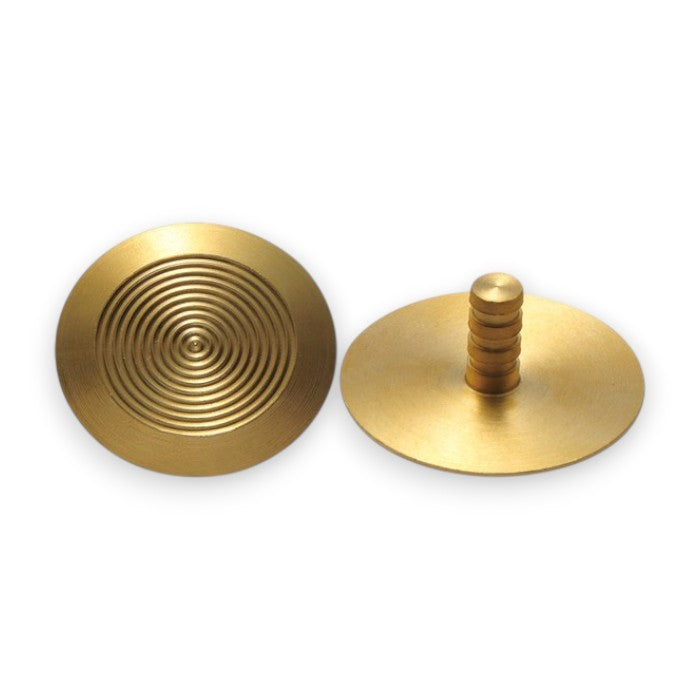

The Tactile Indicator Stud – Brass enhances both safety and accessibility, providing essential tactile guidance for individuals with visual impairments. Precision-engineered from solid brass, this stud offers long-lasting durability while maintaining a refined and discreet appearance, making it suitable for both modern indoor environments and demanding outdoor applications.

Complying with AS/NZS 1428.4.1:2021, it meets strict accessibility standards and is trusted across a wide range of projects, from public walkways and transportation hubs to commercial buildings and urban spaces.

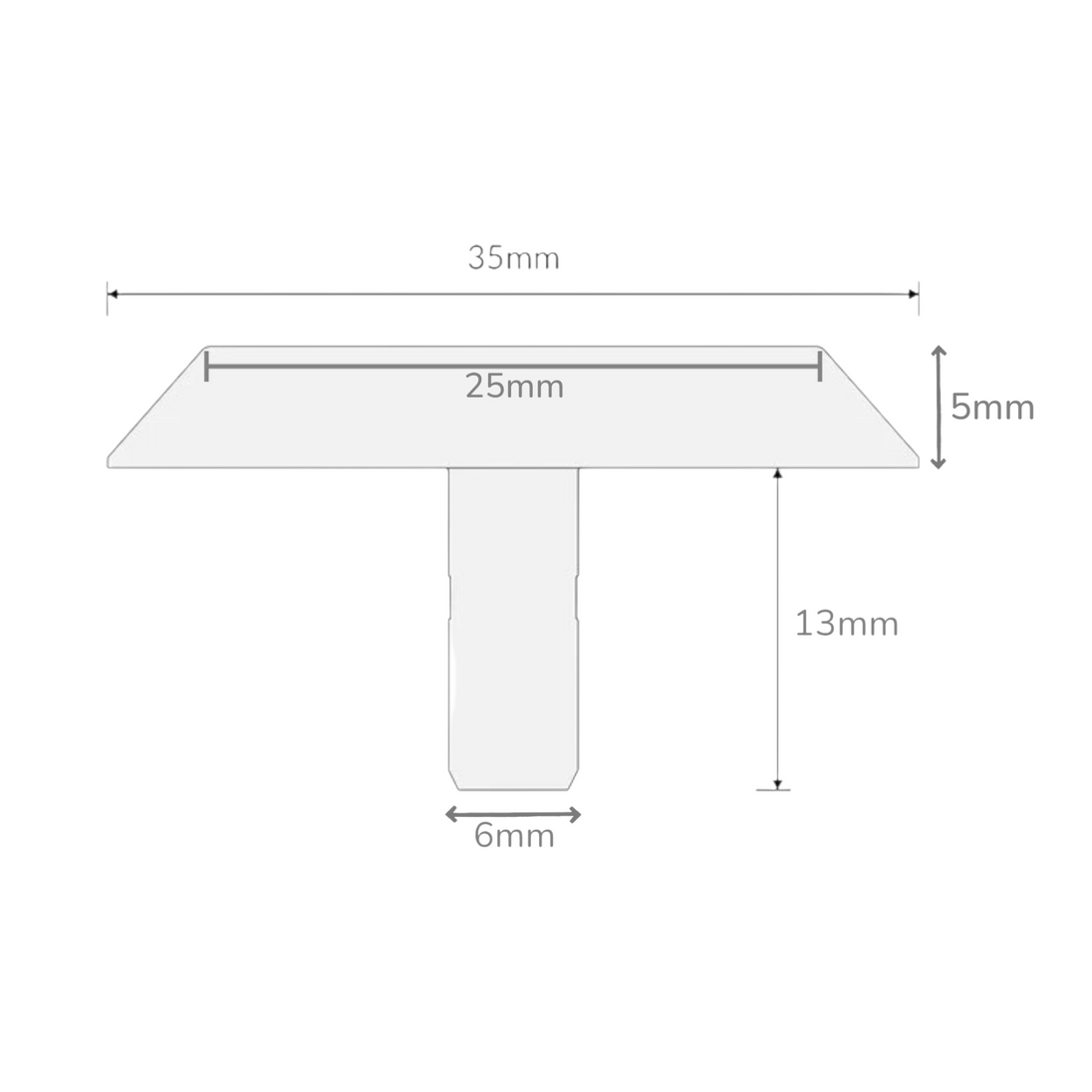

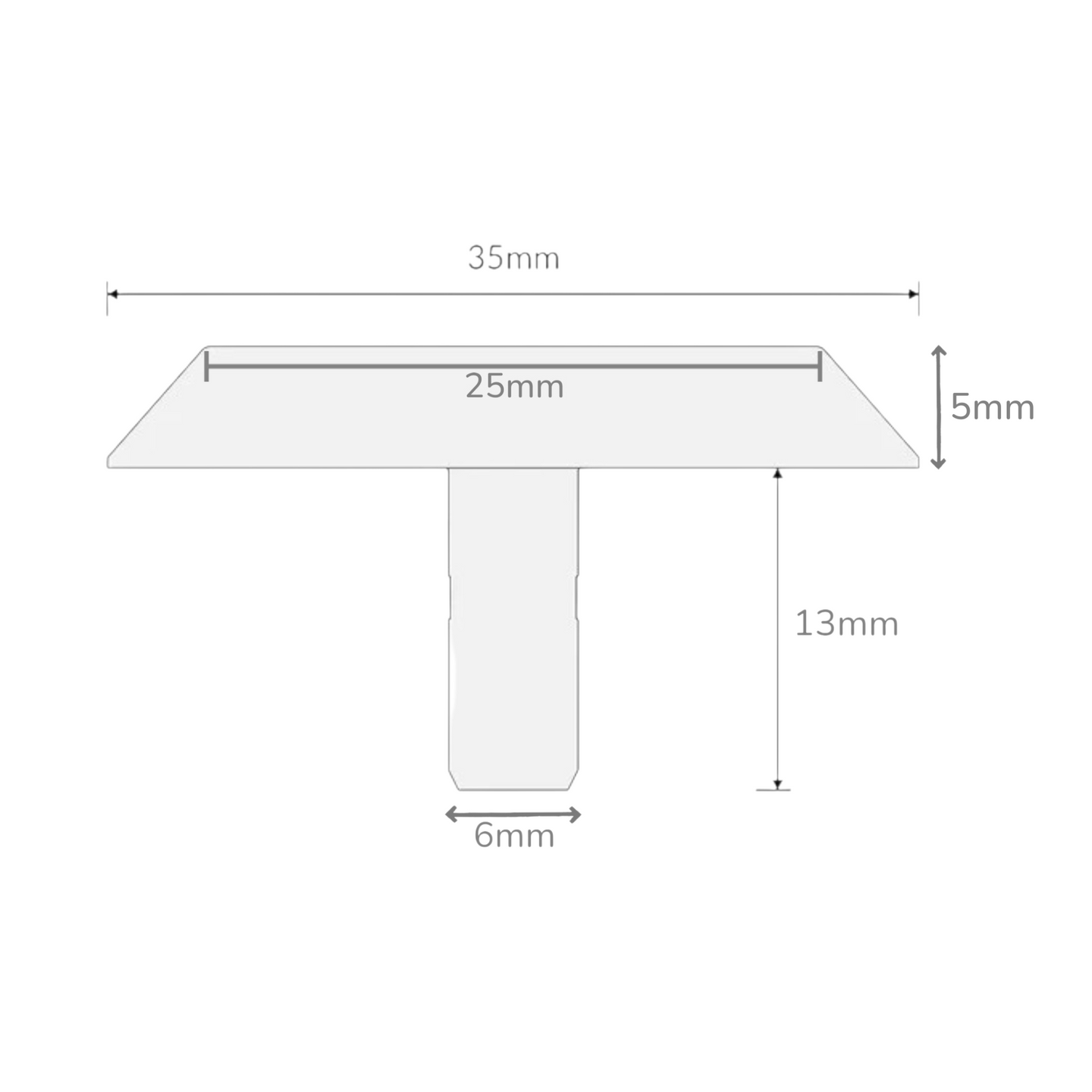

The stud features a single-stud design, installed with a 6mm drill hole, ensuring secure fixing and reliable performance. With a 35mm diameter, 5mm tactile height, and 13mm shaft, it provides clear underfoot detection for effective navigation.

Key Features:

  • Solid brass construction – durable and corrosion-resistant.

  • AS/NZS 1428.4.1:2021 compliant.

  • Single-stud design, 6mm drill hole for installation.

  • Dimensions: 35mm diameter, 13mm shaft, 5mm height.

  • Discreet design blends with various environments.

  • Enhances accessibility for visually impaired individuals.

Specifications:

  • Material: Solid Brass

  • Head Diameter: 35mm

  • Head Height: 5mm

  • Shaft Length: 13mm

  • Drill Hole: 6mm

  • Weight: 30g per stud

  • Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

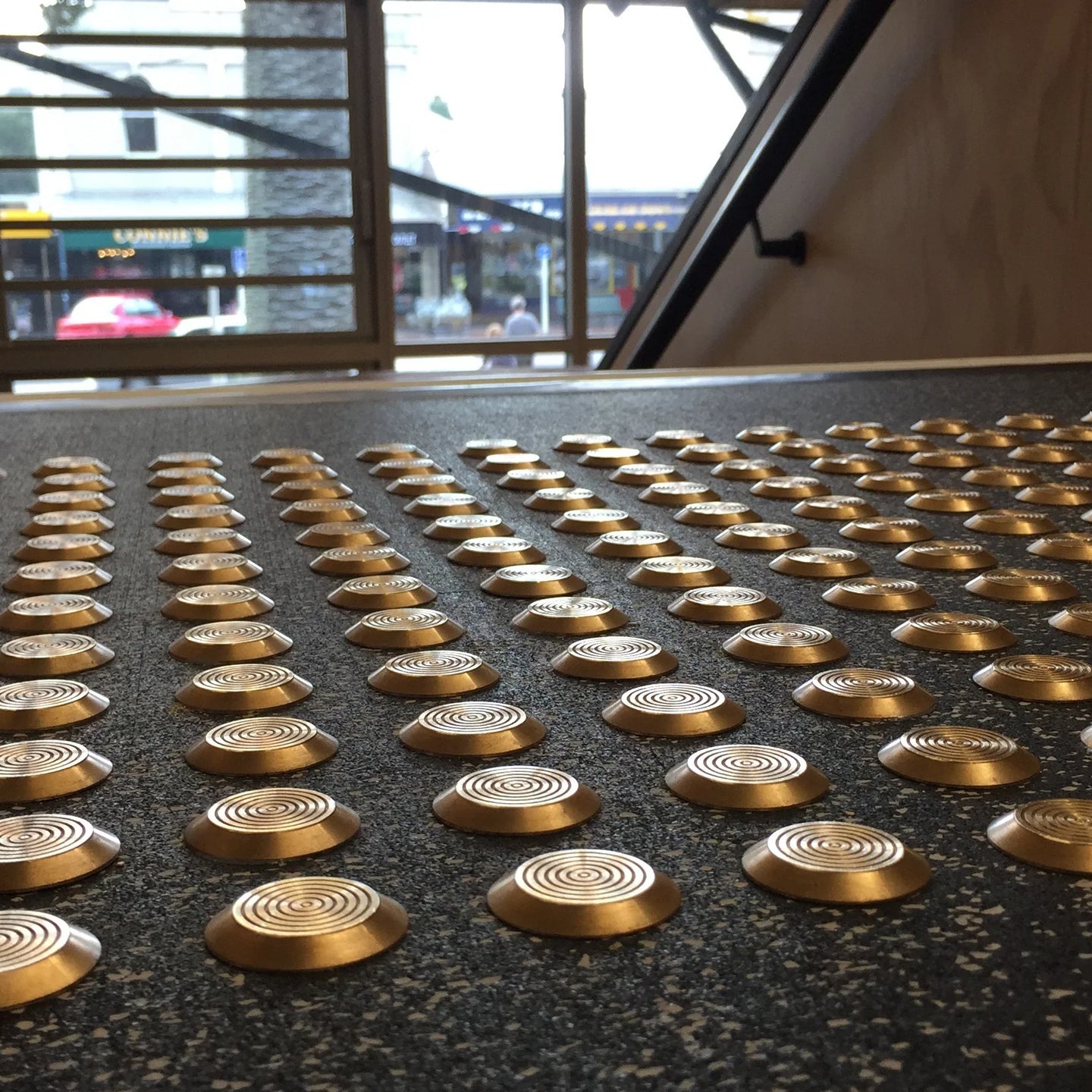

Applications:

  • Public Walkways & Crossings – guide safe pedestrian movement.

  • Transport Hubs – enhance accessibility at train stations, bus stops, and airports.

  • Commercial Buildings – improve safety in entrances, lobbies, and corridors.

  • Outdoor Urban Spaces – parks, plazas, and civic areas.

BIZ DISPLAY ELITE

Tactile Indicator Stud – Brass, 35mm

SKU SF201
AU$2.50
AU$1.47
GST Exempt
In stock

The Tactile Indicator Stud – Brass enhances both safety and accessibility, providing essential tactile guidance for individuals with visual impairments. Precision-engineered from solid brass, this stud offers long-lasting durability while maintaining a refined and discreet appearance, making it suitable for both modern indoor environments and demanding outdoor applications.

Complying with AS/NZS 1428.4.1:2021, it meets strict accessibility standards and is trusted across a wide range of projects, from public walkways and transportation hubs to commercial buildings and urban spaces.

The stud features a single-stud design, installed with a 6mm drill hole, ensuring secure fixing and reliable performance. With a 35mm diameter, 5mm tactile height, and 13mm shaft, it provides clear underfoot detection for effective navigation.

Key Features:

  • Solid brass construction – durable and corrosion-resistant.

  • AS/NZS 1428.4.1:2021 compliant.

  • Single-stud design, 6mm drill hole for installation.

  • Dimensions: 35mm diameter, 13mm shaft, 5mm height.

  • Discreet design blends with various environments.

  • Enhances accessibility for visually impaired individuals.

Specifications:

  • Material: Solid Brass

  • Head Diameter: 35mm

  • Head Height: 5mm

  • Shaft Length: 13mm

  • Drill Hole: 6mm

  • Weight: 30g per stud

  • Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

  • Public Walkways & Crossings – guide safe pedestrian movement.

  • Transport Hubs – enhance accessibility at train stations, bus stops, and airports.

  • Commercial Buildings – improve safety in entrances, lobbies, and corridors.

  • Outdoor Urban Spaces – parks, plazas, and civic areas.

🛡️ Product Warranty

This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.

❓ Product FAQs

What are tactile indicators used for?

Tactile indicators, also known as tactile ground surface indicators or TGSIs, are used to provide a raised ground surface warning for people who are blind or vision impaired. They are commonly installed near stairs, ramps, kerb ramps, pedestrian crossings, train platforms, building entrances, walkways and other Australian public or commercial areas where extra ground surface guidance is required.

Where are tactile indicators commonly installed?

Tactile indicators are commonly installed in public access areas, commercial buildings, schools, hospitals, aged care facilities, shopping centres, apartment buildings, transport areas, office buildings and pedestrian pathways. They are often used near hazards, changes in level, access points and circulation paths to support safer movement through built environments.

Why choose tactile indicators for accessibility and safety?

Tactile indicators help improve accessibility, wayfinding and safety by providing a detectable ground surface warning underfoot. They are an important accessibility product for buildings, workplaces and public spaces that need to support safer access for people with low vision or vision impairment. BIZ Display Elite supplies tactile indicator products for Australian commercial, public and workplace environments.
