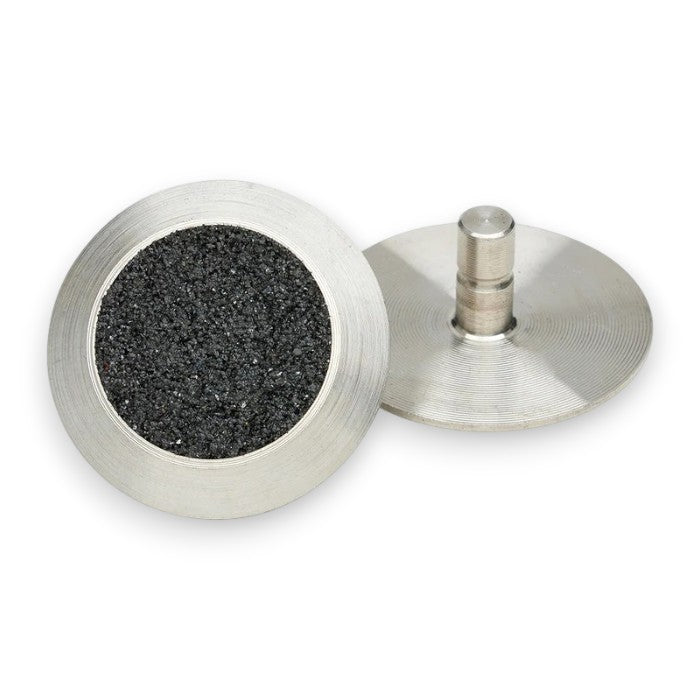

The Tactile Indicator Stud – Stainless Steel with Black Carborundum Insert combines durability with enhanced visibility. Crafted from 316 marine-grade stainless steel, these studs ensure long-term performance in both indoor and outdoor settings. The black carborundum insert provides a contrasting tactile and visual surface, improving detection for individuals with visual impairments.

Engineered to meet AS/NZS 1428.4.1:2021 standards, these studs are suitable for a wide range of environments, from public transit platforms to commercial entrances. Their single stud design with a 6mm drill hole ensures secure and straightforward installation.

Key Features:

  • Manufactured from 316 marine-grade stainless steel.

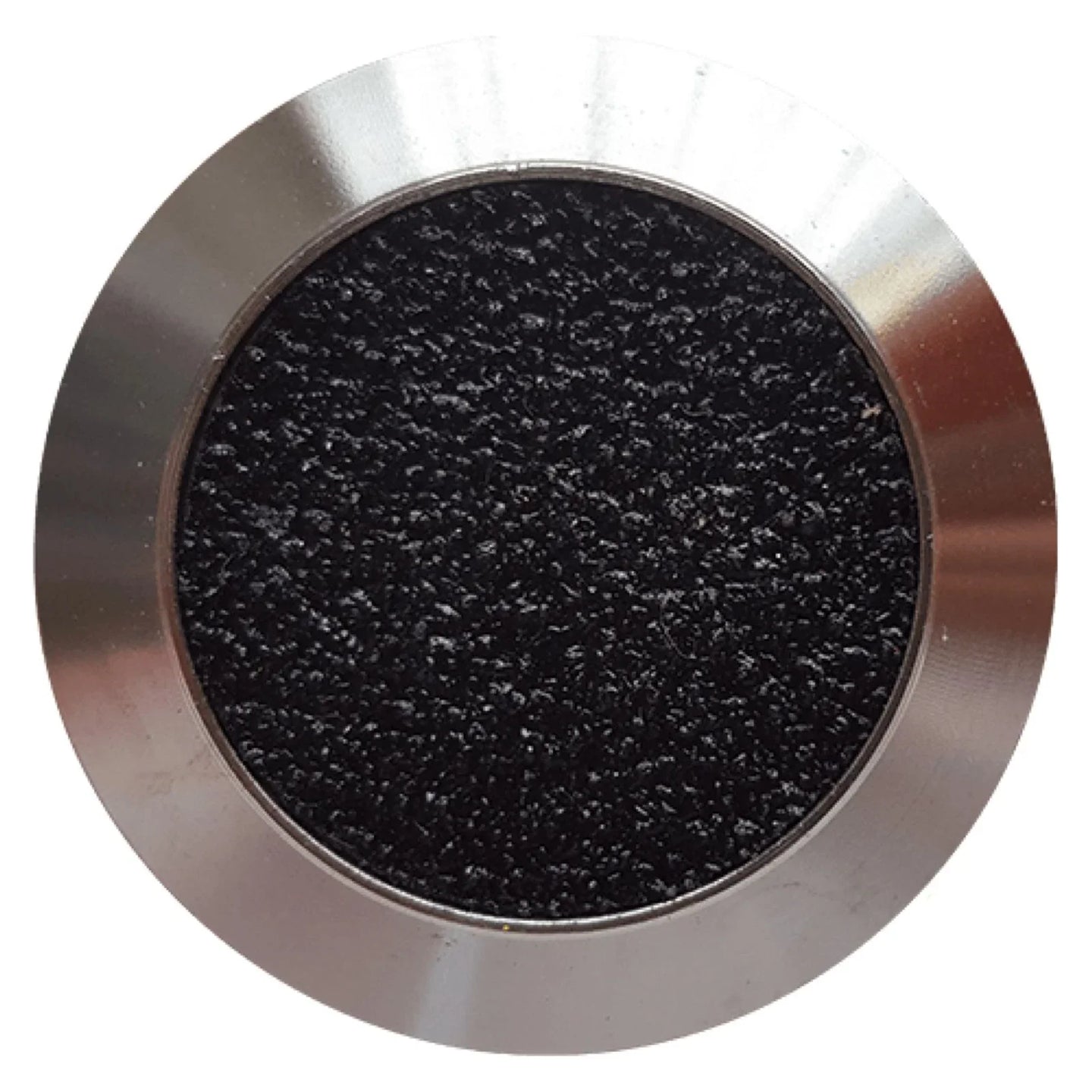

  • Black carborundum insert for increased contrast and visibility.

  • Complies with AS/NZS 1428.4.1:2021 accessibility standards.

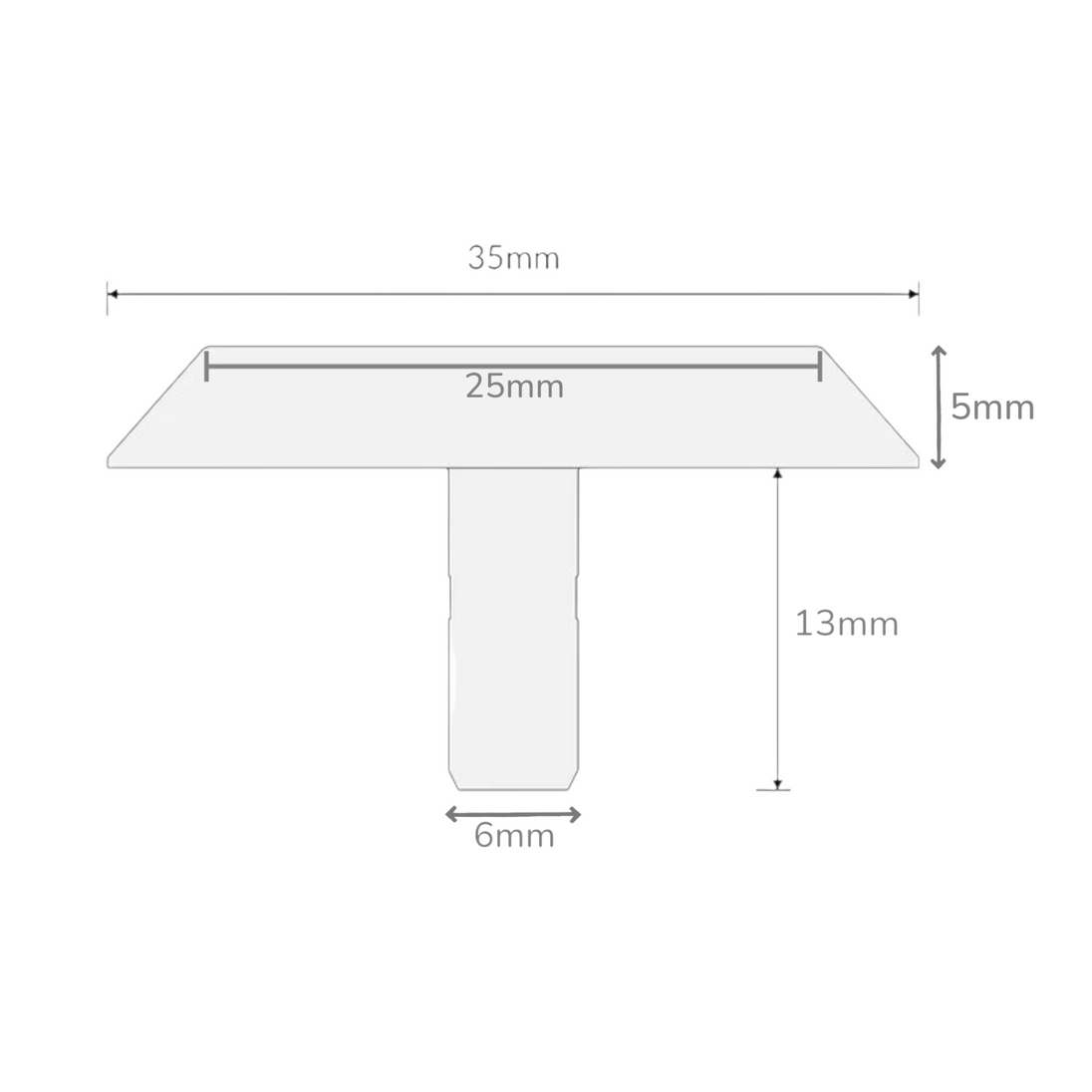

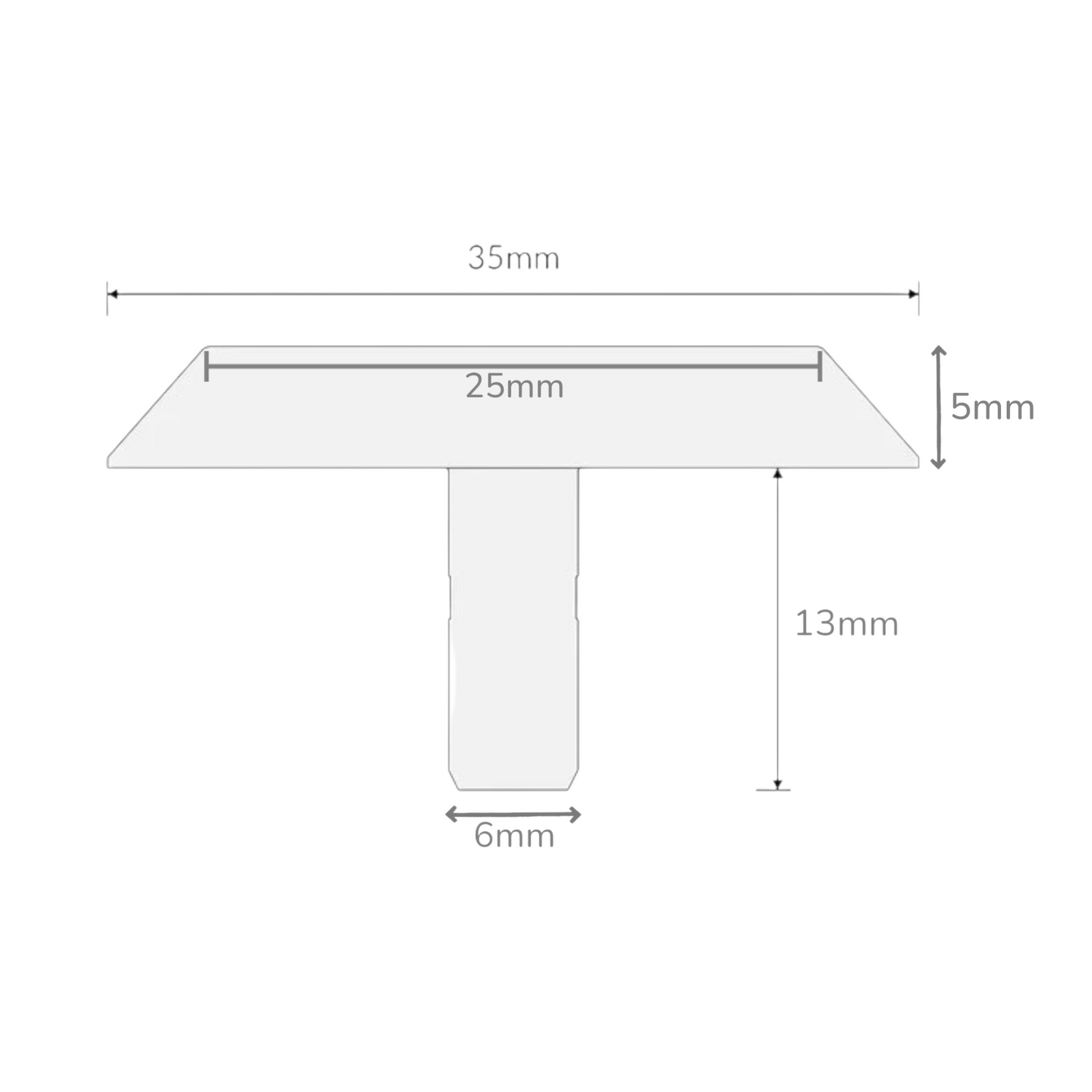

  • Dimensions: 35mm diameter, 5mm height, 13mm shaft.

  • 6mm drill hole for single-stud installation.

  • Suitable for both indoor and outdoor environments.

Specifications:

  • Material: 316 Stainless Steel + Black Carborundum Insert

  • Head Diameter: 35mm

  • Head Height: 5mm

  • Shaft Length: 13mm

  • Drill Hole: 6mm

  • Weight: 25g per stud

  • Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

  • Public Transit Platforms – improve visibility and safety.

  • Pedestrian Crossings – enhance guidance at intersections.

  • Commercial Entrances – durable accessibility solution for retail.

  • Urban Planning Projects – integrate into city walkways and plazas.

BIZ DISPLAY ELITE

Tactile Indicator Stud – Stainless Steel with Black Carborundum Insert

SKU SF161BLA
AU$2.00
AU$1.19
GST Exempt
In stock

The Tactile Indicator Stud – Stainless Steel with Black Carborundum Insert combines durability with enhanced visibility. Crafted from 316 marine-grade stainless steel, these studs ensure long-term performance in both indoor and outdoor settings. The black carborundum insert provides a contrasting tactile and visual surface, improving detection for individuals with visual impairments.

Engineered to meet AS/NZS 1428.4.1:2021 standards, these studs are suitable for a wide range of environments, from public transit platforms to commercial entrances. Their single stud design with a 6mm drill hole ensures secure and straightforward installation.

Key Features:

  • Manufactured from 316 marine-grade stainless steel.

  • Black carborundum insert for increased contrast and visibility.

  • Complies with AS/NZS 1428.4.1:2021 accessibility standards.

  • Dimensions: 35mm diameter, 5mm height, 13mm shaft.

  • 6mm drill hole for single-stud installation.

  • Suitable for both indoor and outdoor environments.

Specifications:

  • Material: 316 Stainless Steel + Black Carborundum Insert

  • Head Diameter: 35mm

  • Head Height: 5mm

  • Shaft Length: 13mm

  • Drill Hole: 6mm

  • Weight: 25g per stud

  • Coverage: 400 studs per m² (e.g. 12.5 m² = 5000 studs)

Applications:

  • Public Transit Platforms – improve visibility and safety.

  • Pedestrian Crossings – enhance guidance at intersections.

  • Commercial Entrances – durable accessibility solution for retail.

  • Urban Planning Projects – integrate into city walkways and plazas.

🛡️ Product Warranty

This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.

❓ Product FAQs

What are tactile indicators used for?

Tactile indicators, also known as tactile ground surface indicators or TGSIs, are used to provide a raised ground surface warning for people who are blind or vision impaired. They are commonly installed near stairs, ramps, kerb ramps, pedestrian crossings, train platforms, building entrances, walkways and other Australian public or commercial areas where extra ground surface guidance is required.

Where are tactile indicators commonly installed?

Tactile indicators are commonly installed in public access areas, commercial buildings, schools, hospitals, aged care facilities, shopping centres, apartment buildings, transport areas, office buildings and pedestrian pathways. They are often used near hazards, changes in level, access points and circulation paths to support safer movement through built environments.

Why choose tactile indicators for accessibility and safety?

Tactile indicators help improve accessibility, wayfinding and safety by providing a detectable ground surface warning underfoot. They are an important accessibility product for buildings, workplaces and public spaces that need to support safer access for people with low vision or vision impairment. BIZ Display Elite supplies tactile indicator products for Australian commercial, public and workplace environments.
