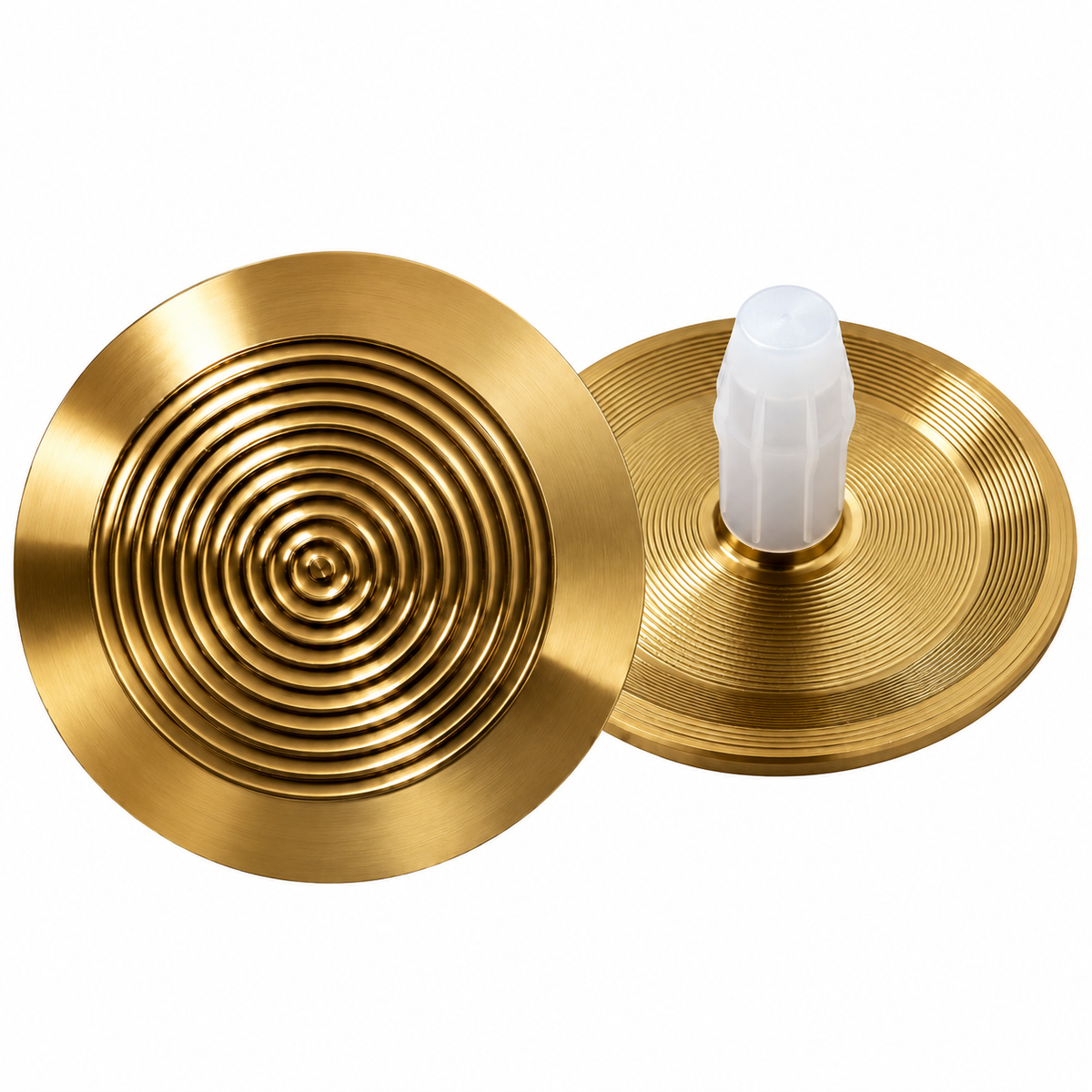

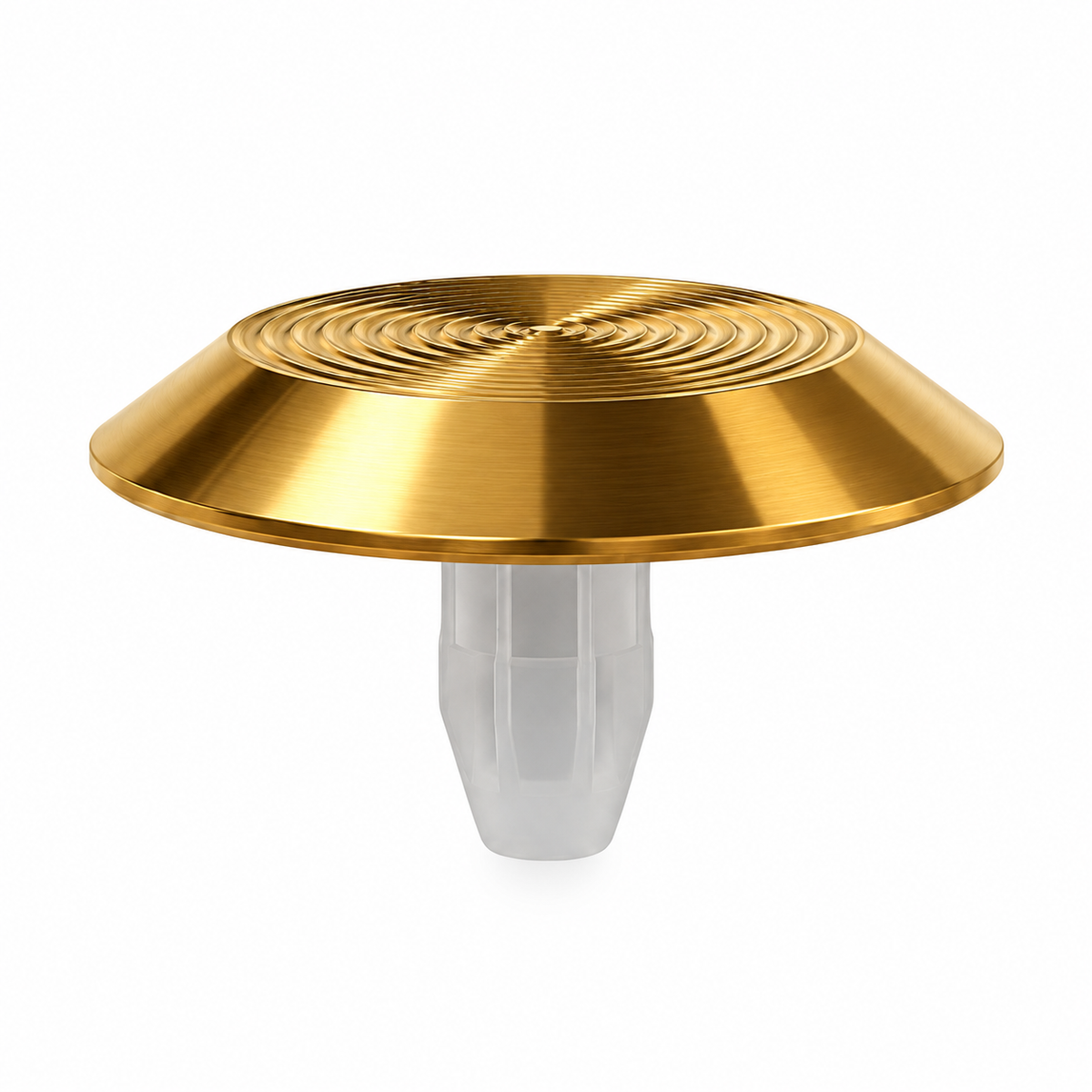

The Stainless Steel Tactile Indicator Stud with Brass Finish provides a durable and visually refined solution for tactile ground surface installations in commercial, public and pedestrian access areas.

Manufactured from 316 stainless steel with a brass finish, each stud features a concentric grooved tactile surface that provides clear tactile indication underfoot while adding a warm, premium appearance to surrounding architectural finishes.

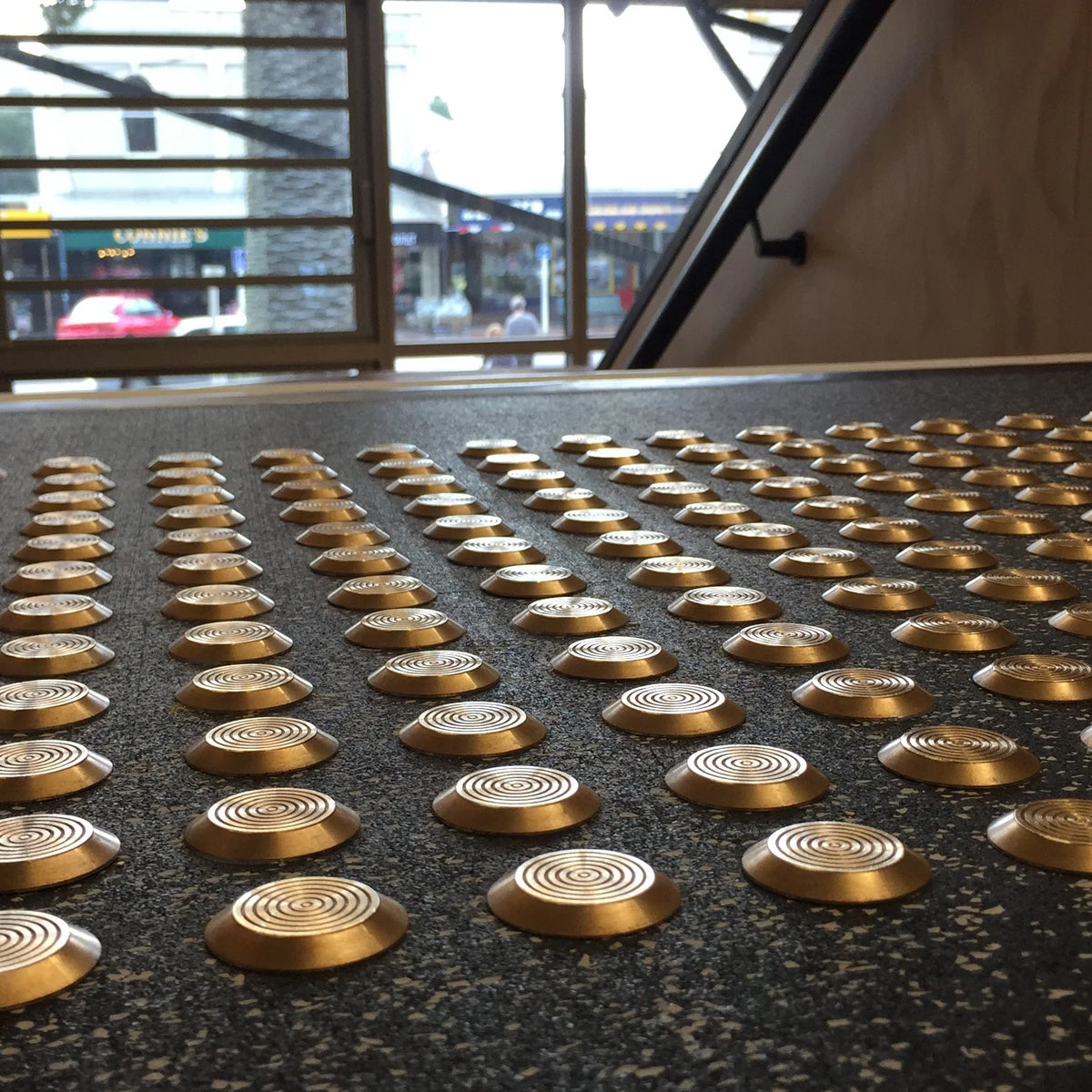

The individual stud design allows flexible installation across a wide range of surfaces and layouts. It is suitable for building entrances, pedestrian pathways, access ramps, stair approaches, shopping centres, offices and other public access areas.

Its corrosion-resistant construction makes it suitable for both indoor and outdoor applications.

Key Features

• 316 stainless steel construction
• Brass finish
• Corrosion and weather resistant

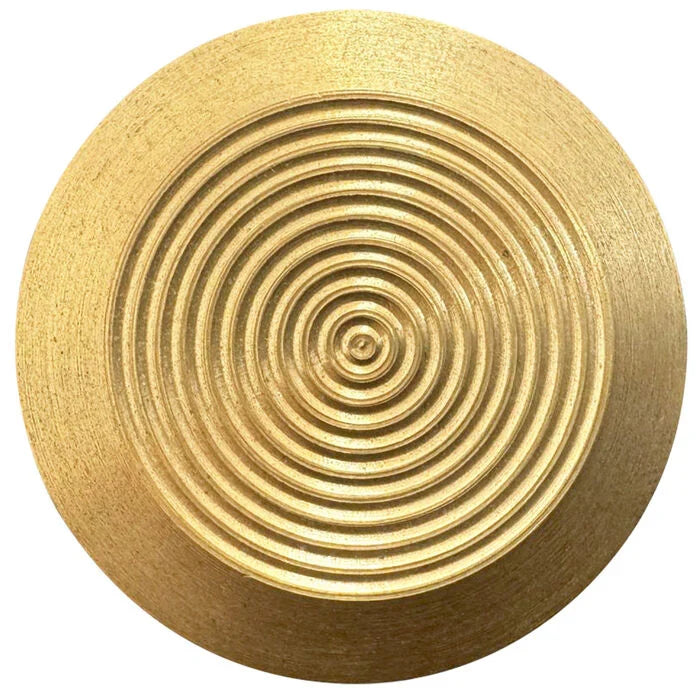

• Concentric grooved tactile surface
• AS/NZS 1428.4.1:2021 compliant
• Approximately 400 studs required per m²
• Suitable for indoor and outdoor use
• Suitable for concrete, stone, tiles and other solid surfaces
• Ideal for commercial and public access applications
• Sold individually

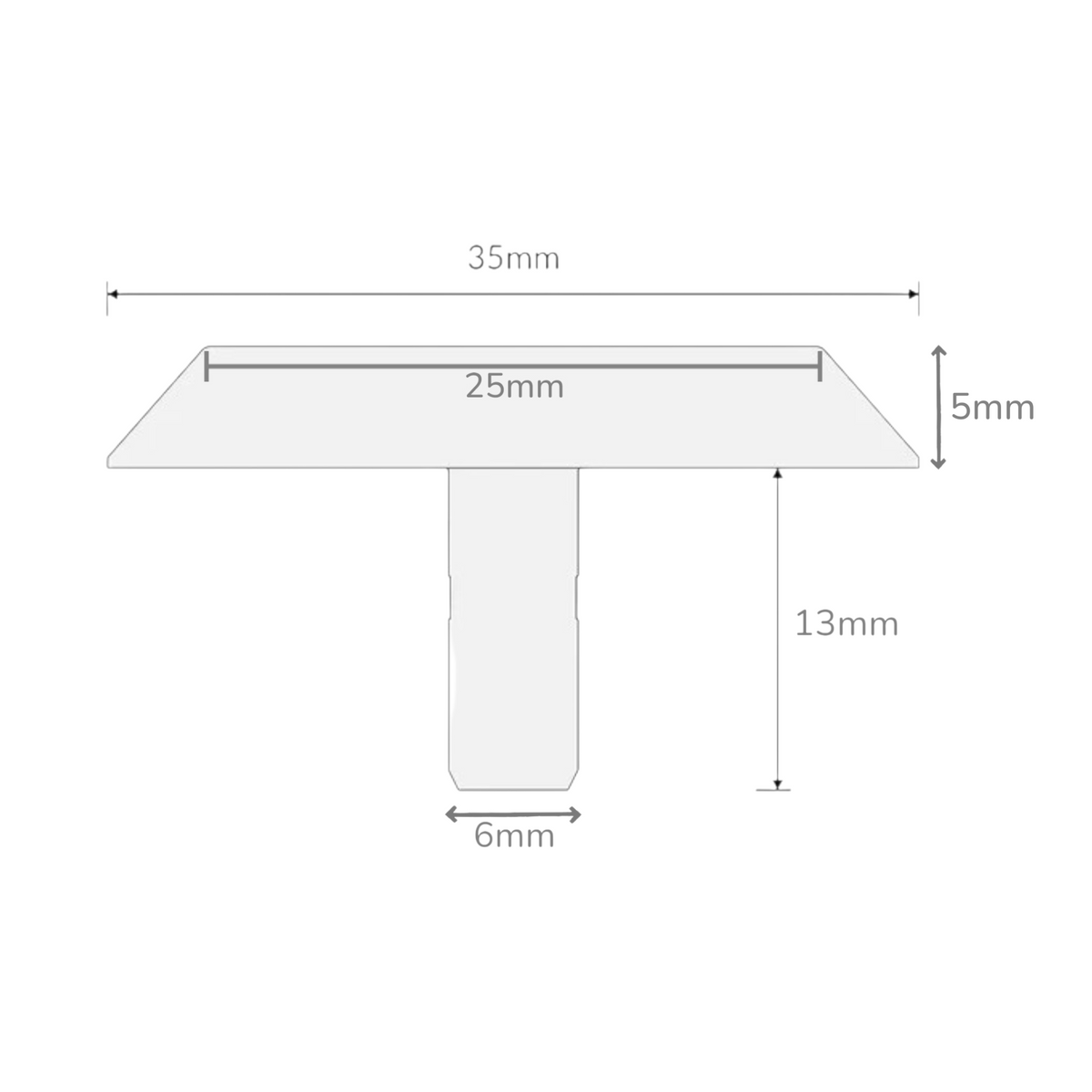

Specifications

Installation

Mark the required stud positions using a suitable tactile indicator installation template. Drill the fixing holes using a 6mm drill bit, remove all dust and debris, and secure each stud using an appropriate construction adhesive suitable for the installation surface.
