The Black Stainless Steel Tactile Indicator Stud provides a practical and visually refined solution for tactile ground surface installations in commercial, public and pedestrian access areas.

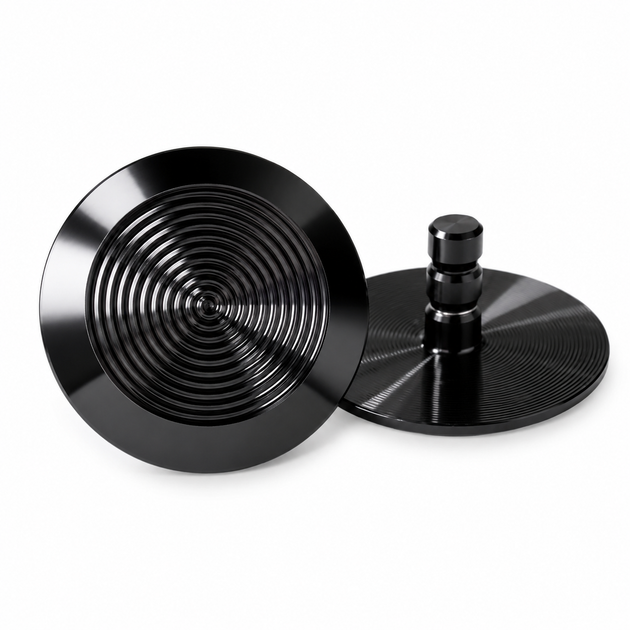

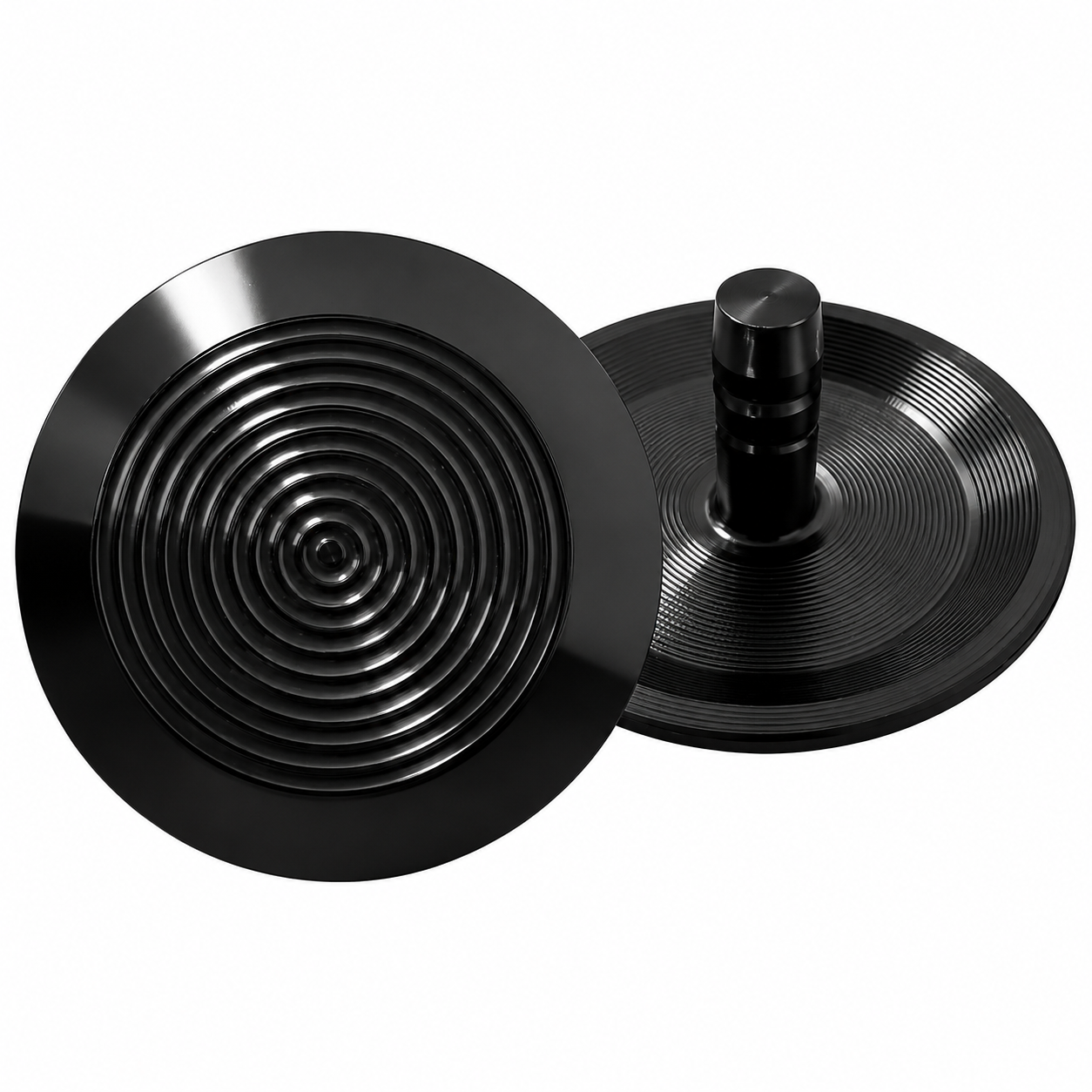

Manufactured from 316 stainless steel with a sleek black finish, each stud features a concentric grooved surface that provides clear tactile indication underfoot while complementing modern architectural surroundings.

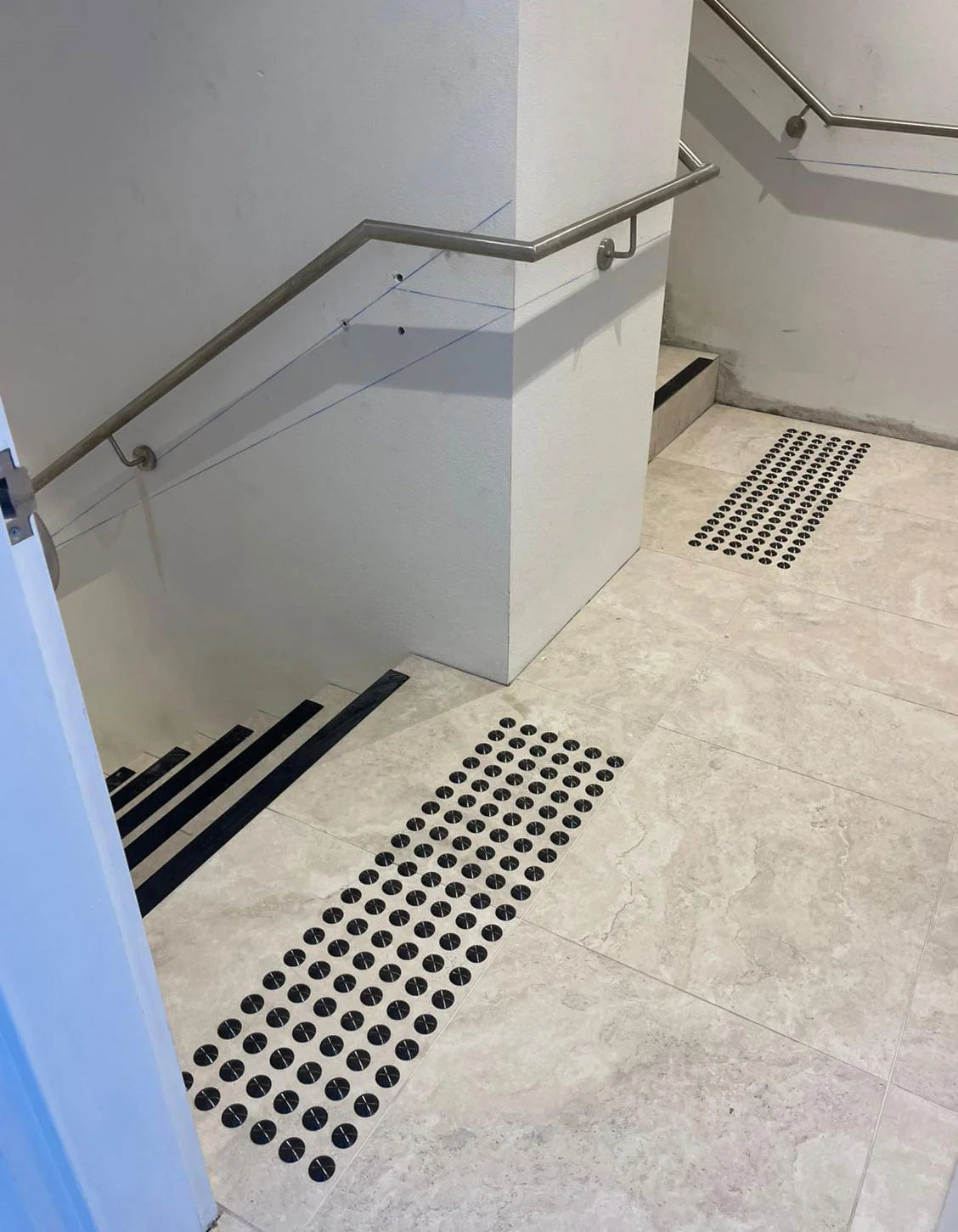

The individual stud design allows flexible installation across a variety of surfaces and layouts. It is suitable for building entrances, pedestrian pathways, access ramps, stair approaches, shopping centres, offices and other public access areas.

Key Features

  • 316 stainless steel construction
  • Sleek black finish
  • Corrosion and weather resistant
  • Concentric grooved tactile surface
  • Approximately 400 studs required per m²
  • Suitable for indoor and outdoor use
  • Suitable for concrete, stone, tiles and other solid surfaces
  • Ideal for commercial and public access applications
  • Sold individually

Specifications

Specification Details
Product Type Tactile Indicator Stud
Material 316 Stainless Steel
Finish Black
Head Diameter 35mm
Tactile Height 5mm
Shaft Length 13mm
Recommended Drill Bit 6mm
Compliance AS/NZS 1428.4.1:2021
Slip Rating R12
Coverage Approx. 400 studs per m²
Sale Unit Sold individually

Installation

Mark the required stud positions using a suitable tactile indicator installation template. Drill the fixing holes using a 6mm drill bit, remove all dust and debris, and secure each stud using an appropriate construction adhesive suitable for the installation surface.

Installation spacing and layout should comply with applicable accessibility requirements and project specifications.

BIZ DISPLAY ELITE

Black Stainless Steel Tactile Indicator Stud – Concentric Ring Design

SKU SF112BLA-E
AU$2.90
AU$1.49
GST Exempt
In stock

The Black Stainless Steel Tactile Indicator Stud provides a practical and visually refined solution for tactile ground surface installations in commercial, public and pedestrian access areas.

Manufactured from 316 stainless steel with a sleek black finish, each stud features a concentric grooved surface that provides clear tactile indication underfoot while complementing modern architectural surroundings.

The individual stud design allows flexible installation across a variety of surfaces and layouts. It is suitable for building entrances, pedestrian pathways, access ramps, stair approaches, shopping centres, offices and other public access areas.

Key Features

  • 316 stainless steel construction
  • Sleek black finish
  • Corrosion and weather resistant
  • Concentric grooved tactile surface
  • Approximately 400 studs required per m²
  • Suitable for indoor and outdoor use
  • Suitable for concrete, stone, tiles and other solid surfaces
  • Ideal for commercial and public access applications
  • Sold individually

Specifications

Specification Details
Product Type Tactile Indicator Stud
Material 316 Stainless Steel
Finish Black
Head Diameter 35mm
Tactile Height 5mm
Shaft Length 13mm
Recommended Drill Bit 6mm
Compliance AS/NZS 1428.4.1:2021
Slip Rating R12
Coverage Approx. 400 studs per m²
Sale Unit Sold individually

Installation

Mark the required stud positions using a suitable tactile indicator installation template. Drill the fixing holes using a 6mm drill bit, remove all dust and debris, and secure each stud using an appropriate construction adhesive suitable for the installation surface.

Installation spacing and layout should comply with applicable accessibility requirements and project specifications.

🛡️ Product Warranty

This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.

❓ Product FAQs

What are tactile indicators used for?

Tactile indicators, also known as tactile ground surface indicators or TGSIs, are used to provide a raised ground surface warning for people who are blind or vision impaired. They are commonly installed near stairs, ramps, kerb ramps, pedestrian crossings, train platforms, building entrances, walkways and other Australian public or commercial areas where extra ground surface guidance is required.

Where are tactile indicators commonly installed?

Tactile indicators are commonly installed in public access areas, commercial buildings, schools, hospitals, aged care facilities, shopping centres, apartment buildings, transport areas, office buildings and pedestrian pathways. They are often used near hazards, changes in level, access points and circulation paths to support safer movement through built environments.

Why choose tactile indicators for accessibility and safety?

Tactile indicators help improve accessibility, wayfinding and safety by providing a detectable ground surface warning underfoot. They are an important accessibility product for buildings, workplaces and public spaces that need to support safer access for people with low vision or vision impairment. BIZ Display Elite supplies tactile indicator products for Australian commercial, public and workplace environments.
