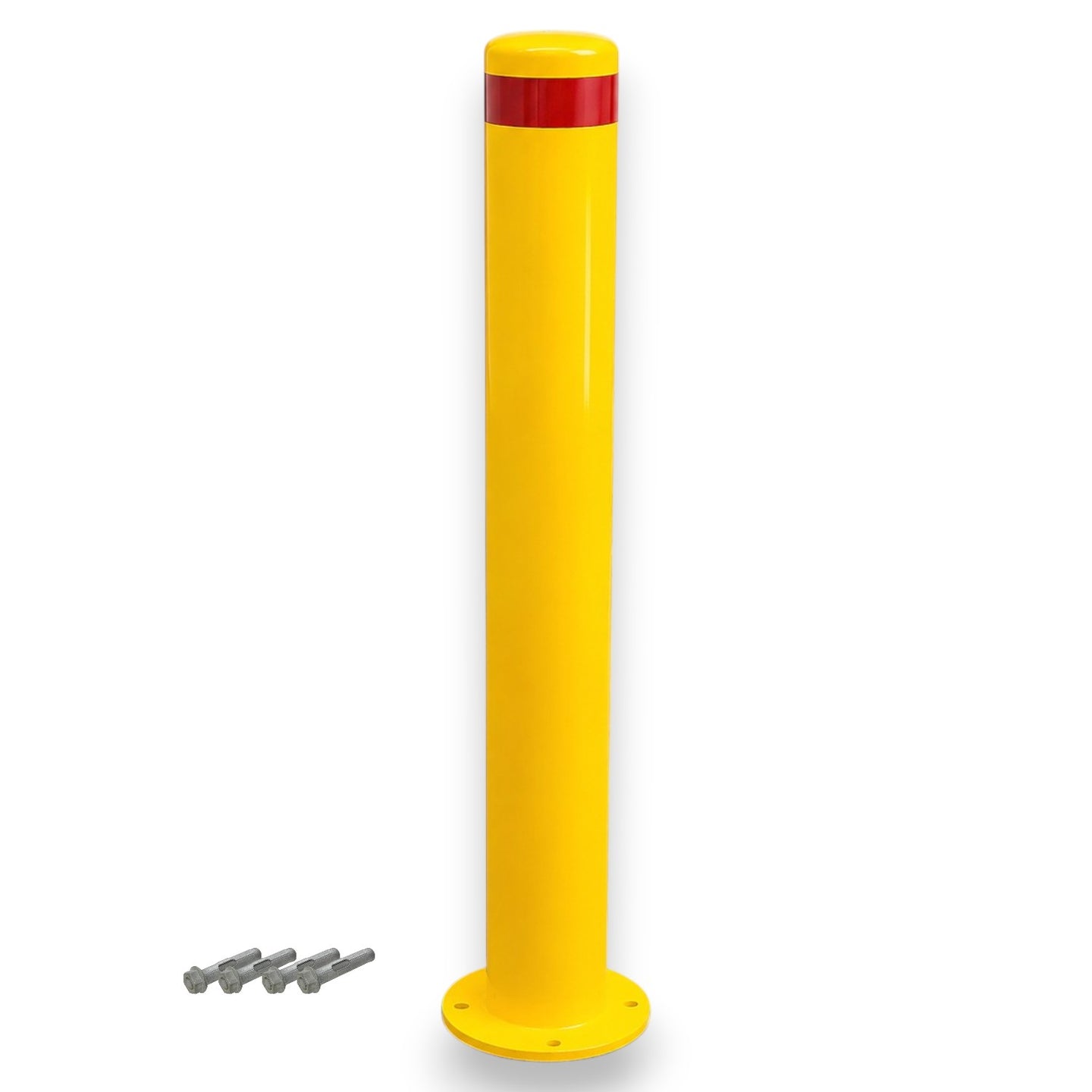

Provide a highly visible physical barrier for warehouses, loading docks, car parks and commercial premises with this 140mm surface mount safety bollard. Its larger 140mm diameter and 1200mm height make it suitable for protecting machinery, building entrances, pedestrian zones and other vulnerable assets. Manufactured from Q235 steel, the bollard is E-coated and powder-coated in high-visibility RAL 1003 yellow for improved durability in demanding environments. A 50mm red reflective band enhances visibility in low-light areas, while the wide welded base plate supports secure installation onto suitable concrete surfaces. Four hot-dip galvanised expansion bolts are included at no additional cost.

Key Features

  • Large 140mm diameter for prominent traffic control and asset protection
  • Extended 1200mm height provides excellent visibility across busy work areas
  • High-visibility RAL 1003 yellow finish for clearly marking protected zones
  • 50mm red reflective band enhances visibility in low-light conditions
  • E-coated and powder-coated surface for enhanced corrosion resistance

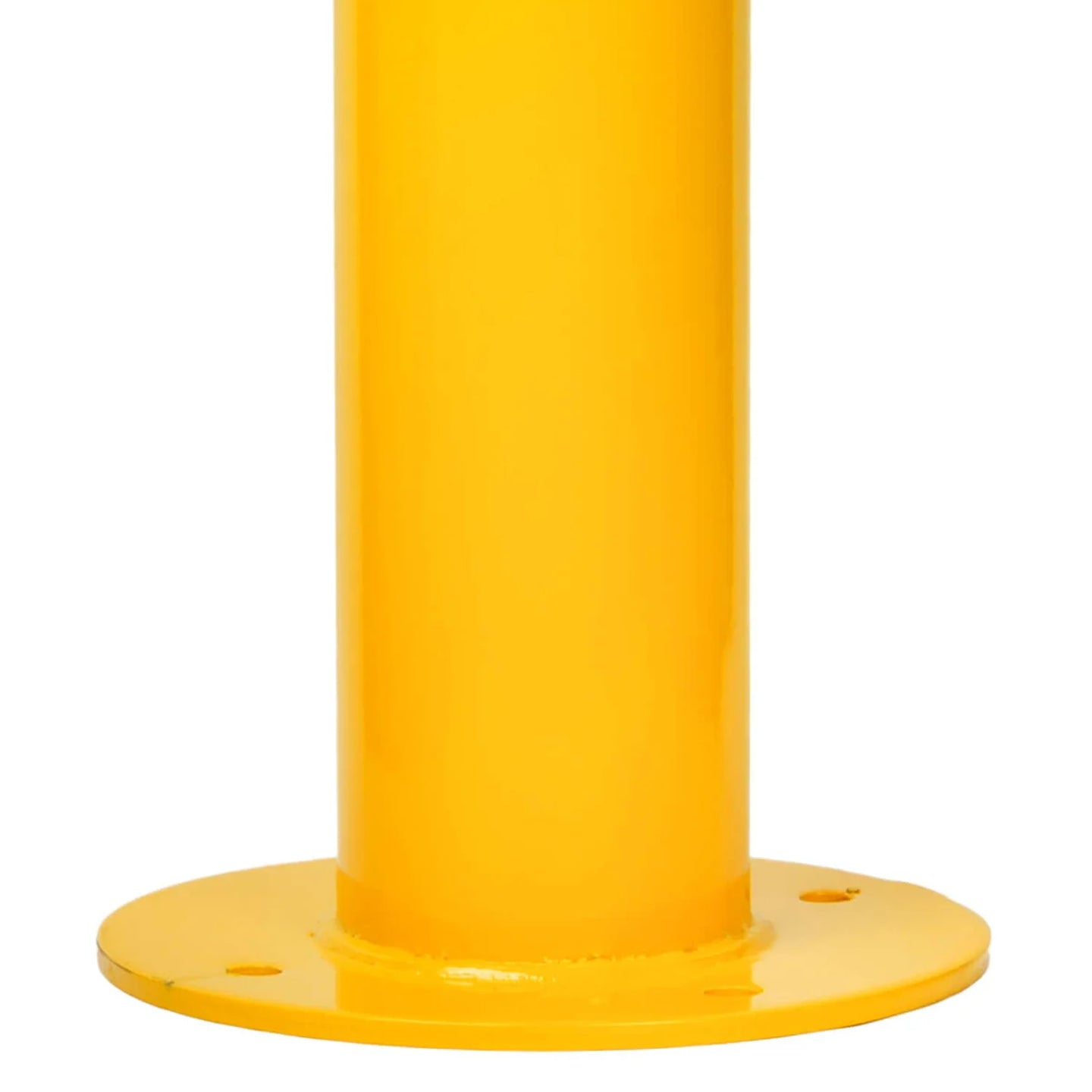

  • Wide welded base plate supports stable surface-mounted installation
  • Moulded plastic top cap provides a clean and professional finish
  • Suitable for warehouses, loading docks, car parks, factories and commercial facilities
  • Includes 4 × M12 × 100mm HDG expansion bolts at no additional cost

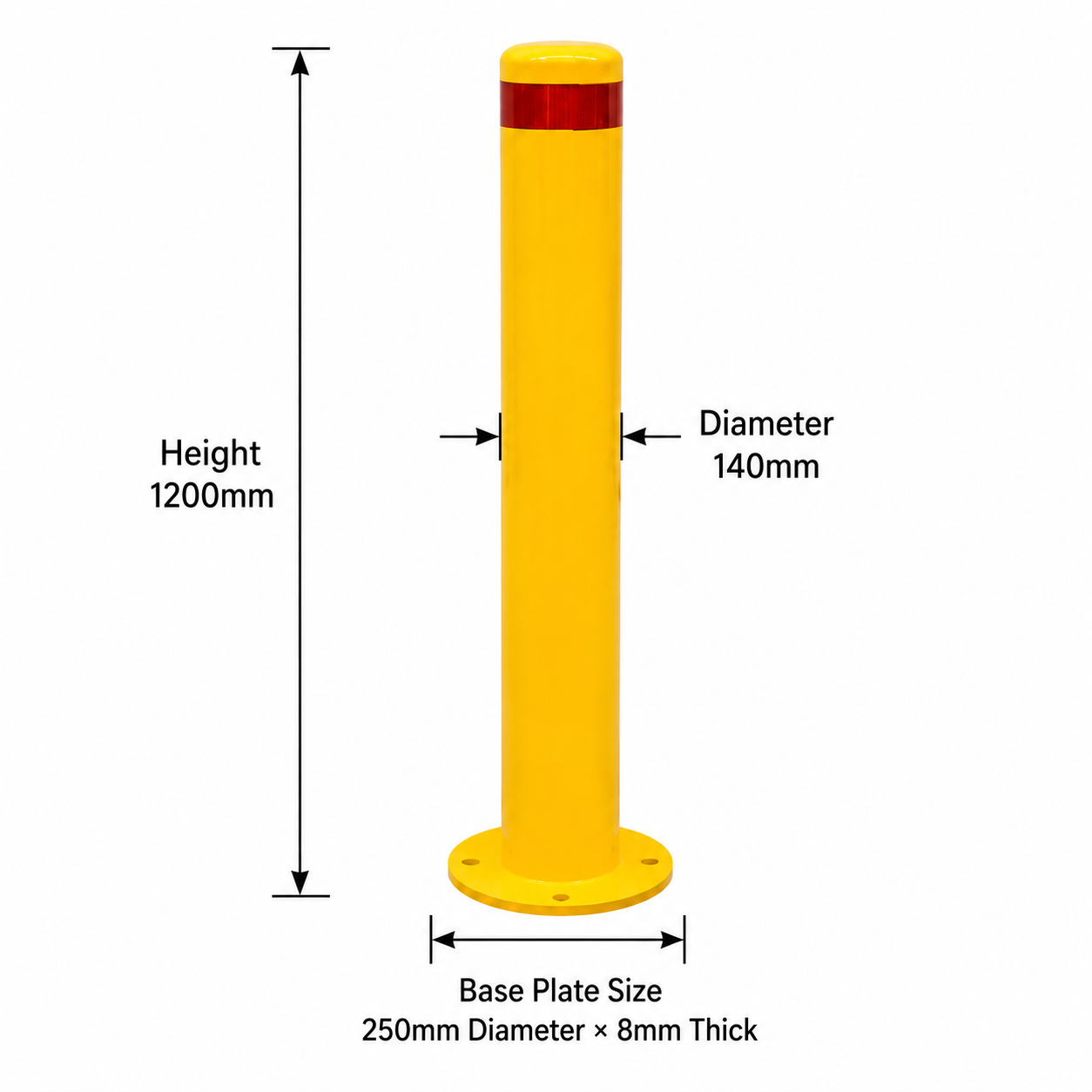

Specifications

Specification Details
Material Q235 Steel
Wall Thickness 3mm
Weight 15kg
Height 1200mm
Diameter 140mm
Base Plate Size 250mm Diameter × 8mm Thick
Mounting Hole Size 4 × 16mm Holes
Finish E-Coated and Powder-Coated, RAL 1003 Yellow
Reflective Band 50mm Red Reflective Band
Fixings Included 4 × M12 × 100mm HDG Expansion Bolts

BIZ DISPLAY ELITE

140mm Heavy-Duty Surface Mount Bollard – 1200mm Yellow Steel Bollard

SKU SMYB140
AU$199.00
AU$165.90
Inclusive of GST
In stock

Provide a highly visible physical barrier for warehouses, loading docks, car parks and commercial premises with this 140mm surface mount safety bollard. Its larger 140mm diameter and 1200mm height make it suitable for protecting machinery, building entrances, pedestrian zones and other vulnerable assets. Manufactured from Q235 steel, the bollard is E-coated and powder-coated in high-visibility RAL 1003 yellow for improved durability in demanding environments. A 50mm red reflective band enhances visibility in low-light areas, while the wide welded base plate supports secure installation onto suitable concrete surfaces. Four hot-dip galvanised expansion bolts are included at no additional cost.

Key Features

  • Large 140mm diameter for prominent traffic control and asset protection
  • Extended 1200mm height provides excellent visibility across busy work areas
  • High-visibility RAL 1003 yellow finish for clearly marking protected zones
  • 50mm red reflective band enhances visibility in low-light conditions
  • E-coated and powder-coated surface for enhanced corrosion resistance
  • Wide welded base plate supports stable surface-mounted installation
  • Moulded plastic top cap provides a clean and professional finish
  • Suitable for warehouses, loading docks, car parks, factories and commercial facilities
  • Includes 4 × M12 × 100mm HDG expansion bolts at no additional cost

Specifications

Specification Details
Material Q235 Steel
Wall Thickness 3mm
Weight 15kg
Height 1200mm
Diameter 140mm
Base Plate Size 250mm Diameter × 8mm Thick
Mounting Hole Size 4 × 16mm Holes
Finish E-Coated and Powder-Coated, RAL 1003 Yellow
Reflective Band 50mm Red Reflective Band
Fixings Included 4 × M12 × 100mm HDG Expansion Bolts

🛡️ Product Warranty

This product comes with a 1-year manufacturer warranty against manufacturing defects. The warranty does not cover damage caused by misuse, improper installation, normal wear and tear, or accidental damage.

❓ Product FAQs

Are installation fixings included with the bollard?

Yes. Suitable fixings are included at no additional cost where specified on the product page. Please check the product specifications for the exact fixing type, size and quantity supplied.

Which type of bollard should I choose?

Choose a fixed bollard for permanent access control and asset protection, a removable bollard where occasional vehicle access is required, or a fold-down bollard for parking spaces and frequently accessed areas. Surface-mounted bollards are generally easier to install on existing concrete, while in-ground bollards provide a cleaner and more permanent installation.

Will the bollard rust outdoors?

Protective finishes such as galvanising, E-coating and powder coating help reduce corrosion, but no steel product is completely maintenance-free. Inspect the bollard regularly, clean off dirt and salt deposits, and repair any chipped or damaged coating promptly. More frequent maintenance is recommended in coastal, wet or chemically exposed environments.
